Stainless steel high pressure reducer tee

Stainless steel high pressure reducer tee is a critical component in many industrial applications, especially in industries where high pressure systems are utilized.

Commodity name： Stainless steel high pressure reducer tee

Category:

Forged Pipe Fittings

E-mail:

sales@enfipipe.com

Get A Quote Related Products

Product Introduction

Stainless steel high pressure reducer tee is a critical component in many industrial applications, especially in industries where high pressure systems are utilized. The reducer tee is designed to reduce the flow of a fluid in a pipeline while maintaining the pressure of the system. Made of durable stainless steel, this fitting is able to withstand high pressures and maintain its integrity even in harsh operating conditions.

One of the key advantages of using a stainless steel high pressure reducer tee is its resistance to corrosion. Stainless steel is known for its ability to resist rust and corrosion, making it an ideal material for applications where the fitting will come into contact with liquids or gases that can cause degradation over time. This resistance to corrosion helps to prolong the lifespan of the fitting and ensures that it will continue to perform reliably even in demanding environments.

In addition to its durability and resistance to corrosion, stainless steel high pressure reducer tee also offers excellent strength and stability. This allows the fitting to withstand the high pressures that it is subjected to without warping or deforming, ensuring that the system remains safe and efficient. Overall, the stainless steel high pressure reducer tee is a crucial component in industrial systems where pressure control is essential, providing durability, corrosion resistance, and stability for optimal performance.

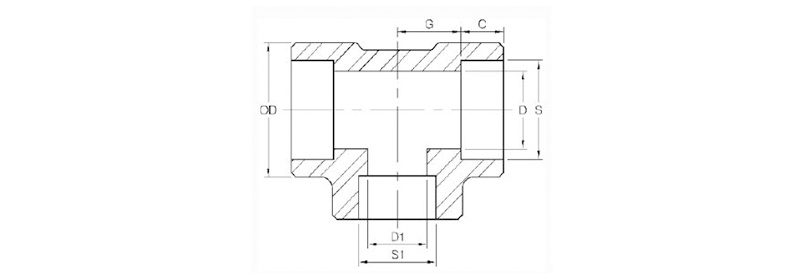

Specification	Specification	Total height	Outer diameter OD	Socket inside diameter S	Socket inner diameter S1	Through hole bore D	Through hole diameter D1	Socket depth C	Socket depth C1	Center to socket bottom G	Large diameter wall thickness	Minor wall thickness	Weight (KG)
15*8	1/2*1/4	50	33	22.3	14. 5	15	8.5	9.5	9.5	15.5	5.4	9. 3	0.4
15*10	1/2*3/8	50	33	22.3	18	15	11. 8	9.5	9.5	15.5	5.4	7.5	0.4
20*10	3/4*3/8	63	38	27.5	18	20. 2	11. 8	12. 5	9. 5	19	5.3	10. 0	0. 5
20*15	3/4*1/2	63	38	27.5	22.3	20.2	15	12. 5	9.5	19	5.3	7.9	0. 5
25*15	1*1/2	70	46	34.5	22. 3	25.9	15	12. 5	9. 5	22.5	5.8	11. 9	0.7
25*20	1*3/4	70	46	34.5	27.5	25.9	98	12. 5	12.5	22.5	5.8	9.3	0.7
32*15	1-1/4*1/2	79	57	42.7	22. 3	34. 3	15	12. 5	9.5	27	7.2	17.4	1.2
32*20	1-1/4*3/4	79	57	42.7	27.5	34. 3	20.2	12. 5	12.5	27	7.2	14. 8	1.1
32*25	1-1/4*1	79	57	42.7	34. 5	34. 3	25.9	12. 5	12. 5	27	7.2	11. 3	1.1
40*15	1-1/2*1/2	89	63	48.8	22. 3	40. 1	15	12. 5	9.5	32	7.1	20.4	1.5
40*20	1-1/2*3/4	89	63	48.8	27. 5	40.1	20. 2	12.5	12.5	32	7.1	17.8	1.4
40*25	1-1/2*1	89	63	48.8	34. 5	40.1	25.9	12. 5	12.5	32	7.1	14. 3	1.3
40*32	1-1/2*1-1/4	89	63	48.8	42.7	40. 1	34. 3	12. 5	12.5	32	7.1	10. 2	1. 2
50*15	2*1/2	108	76	60.8	22. 3	51.7	15	16	9.5	38	7.6	26.9	2.4
50*20	2*3/4	108	76	60.8	27. 5	51.7	20. 2	16	12.5	38	7.6	24. 3	2.3
50*25	2*1	108	76	60.8	34. 5	51. 7	25.9	16	12.5	38	7.6	20.8	2. 2
50*32	2*1-1/4	108	76	60.8	42.7	51. 7	34. 3	16	12.5	38	7.6	16. 7	2.1
50*40	2*1-1/2	108	76	60.8	48.8	51. 7	40. 1	16	12. 5	38	7.6	13. 6	2.0

Parameter

Forged Steel Fittings Specification
Size	1/8〞（DN6）to 4〞(DN100)
Class	3000LBS,6000LBS, 9000LBS.
Connection Form	Socket Welding/Threaded
Surface Treatment	Sand Blasting,Cold and Hot Dip Galvanized
Manufacturing process	Cutting,Heat treatment,Die Forging/Free Forging,CNC Machining
Manufacturing Standards	ASME B16.11，BS 3799，JIS B2316，GB/T14383，SH3410，HG/T21634
Material Grades
Carbon Steel	ASTM/ASNE A105,ASME A350 LF2 LF6 20#,Q235,Q345
Stainless Steel	ASTM F304,F304L,F316,F316L
Duplex & Super Duplex Steel	ASTM A182-F51,F53,F55,S31803,S22253,S32205,S22053
Alloy Steel	ASTM F5,F9,F11,F22,F91
Copper Alloy Steel	ASTM/ASME SB466 UNS NO.C70600(CU/NI-90/10),C71500(CU/NI-70/30)
Nickel Alloy	ASTM/ASME SB336,ASME SB564/160/163/472,UNS2200(NICKEL200)UNS2201(NICKEL201),UNS4400(MONEL400),UNS8020(ALLOY20/20 CB3),UNS8825 INCONEL(825),UNS6600(INCONEL600),UNS6601(INCONEL601),UNS6625(INCONEL625),UNS10276(HASTELLOY C276)
