Introduction to EN Standard TYPE B Elbow
Release Time:
Jun 06,2025

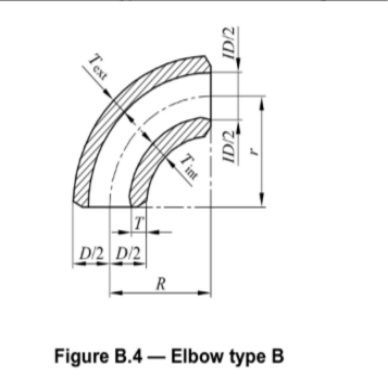

Product Name: EN TYPE B Elbow (R=3D)
Product Overview:
The EN TYPE B elbow is a butt-weld steel fitting manufactured in accordance with European standards (EN 10253). It is designed to change the direction of flow in pressure piping systems. With a bending radius of 3 times the nominal diameter (R=3D), this elbow reduces turbulence and pressure drop, making it ideal for high-flow or abrasion-prone environments
.
Key Features:
- Standards: EN 10253-2 / EN 10253-4
- Radius: R = 3D
- Connection: Butt Weld
- Available Materials: Carbon Steel (P235GH, P265GH), Stainless Steel (1.4307, 1.4541), etc.
- Common Angles: 45°, 90°, 180° (Custom angles available)
- Applications: Oil & Gas, Petrochemical, Power Plant, HVAC, Marine, Water Treatment, etc.
Advantages:
TYPE B elbows are engineered for superior strength and corrosion resistance, suitable for demanding piping systems with strict welding requirements. They are commonly used in critical pipelines with long service life and high performance expectations.
